AE 3007

Proven Power

Initially developed to create a turbofan member of the AE common core family for the growing regional jet and medium/large business jet markets, further development created a growth version of military aircraft applications.

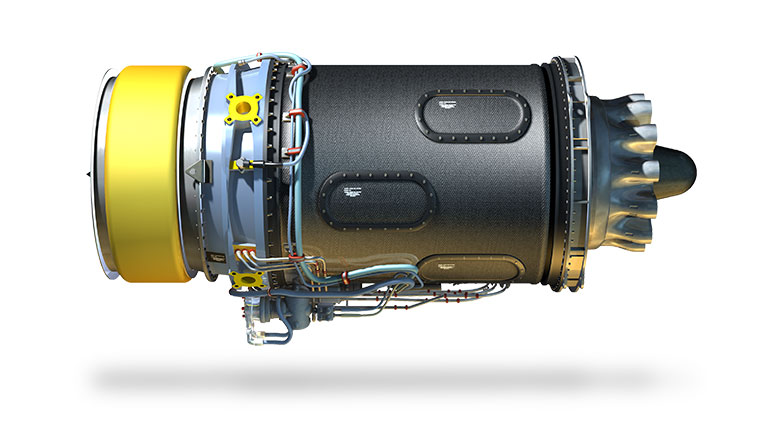

The AE 3007 turbofan core is derived from the AE 1007C-Liberty engine and is in the 8,000lbf thrust class. The AE 3007 turbofan engine is a high bypass, two shaft engine.

The engine features a wide-chord single-stage low pressure (LP) compressor, 14-stage high pressure (HP) compressor, an effusion-cooled annular combustor, two stage high pressure HP) turbine and a three stage low pressure (LP) turbine.

8,000
Thrust class range (lbf)
3,400+
Engines in service to date
70
Flying hours in the AE family (Million+)

Intelligence, reconnaissance, and surveillance aircraft

Powering the Northrop Grumman RQ-4A Global Hawk:

  • A single AE 3007H engine allows the Northrop Grumman R-Q4A Global Hawk to fly at over 65,000 ft
  • It provides the fuel efficiency required and the electrical power necessary to fly surveillance missions over 30 hours
  • The system has already proven itself over the skies of Afghanistan and Iraq

A high-altitude, unmanned aircraft:

  • The Northrop Grumman Triton is also powered by a single Rolls-Royce AE 3007H engine
  • The AE 3007H provides the power to fly surveillance missions up to 24 hours at altitude over 10 miles high
  • The Triton is specially designed to allow coverage out to 2,000 nautical miles, our engine provides the fuel efficiency and electrical power

Powering the Embraer 145

  • Two AE 3007A1P engines power the Embraer 145 Special Version aircraft used for intelligence, reconnaissance and surveillance missions

Aftermarket Support and Services

Pioneering next-generation, digitally enabled solutions

We continue to be at the forefront of developing and providing comprehensive service packages for managing engines throughout their life-cycle.

Services Portfolio

Developing & providing service packages to enable mission success.

Services Portfolio

Rolls-Royce has always been at the forefront of developing and providing comprehensive services for managing engines throughout their life-cycle.

We are able to combine knowledge inherent to the designer, with the data generated from engines in operation and supply chain network to deliver services which create value for our customers.

The Services Portfolio offers access to many of the core capabilities Rolls-Royce has developed supporting customer fleets around the world. The portfolio encompasses a variety of capabilities offering service solutions to match every operational need. The service offerings range from Foundation Technical Support, covering technical assistance requirements through to Operational Data Analysis, enabling decision making informed by comprehensive data management solutions

Find out more on the services portfolio

MissionCare®

Remove uncertainty of fleet availability by transferring risk & cost to us.

MissionCare®

MissionCare® provides a comprehensive support service combining the capabilities and expertise of Rolls-Royce:

  • Acting as original equipment manufacturer to maximise your engine availability
  • 24/7 technical support
  • Specialised fleet data analysis and local, regional & global support networks are utilised to provide unparalleled support services.

For a fixed cost per flying hour, MissionCare removes the uncertainties of fleet availability by transferring the risk and cost of engine management and reliability to Rolls-Royce

Find out more on the services portfolio

Engine Repair Management

We manage, overhaul and repair your engine and line replaceable units (LRUs).

Engine Repair Management

Under an ERM support contract:

  • We manage your engine and line replaceable units (LRUs) overhaul and repair, acting as your single point of contact. Using our extensive overhaul and repair experience, we will coordinate the complete repair process. We ensure that all overhaul and repair activities are completed to Rolls-Royce quality standards, efficiently and cost effectively.
  • We coordinate shipping logistics to and from our maintenance facility, providing work scope, optimising configuration and reliability, whilst managing turn-time performance and maintenance facility quality.

Find out more on the services portfolio

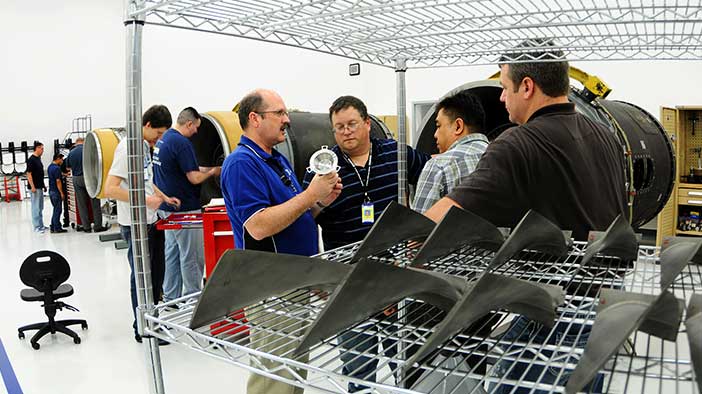

Customer Training

Our bespoke training programmes cover areas including general engine familiarisation, inspection techniques and other disciplines to enhance safety, reliability and efficiency.
