At the heart of the Trent 1000 XE is a design principle that has defined Rolls-Royce engines for over 50 years and accumulated more than 380 million hours of service: three-shaft architecture. While most of the industry relies on a conventional two-shaft design, our RB211 and Trent engines are unique.

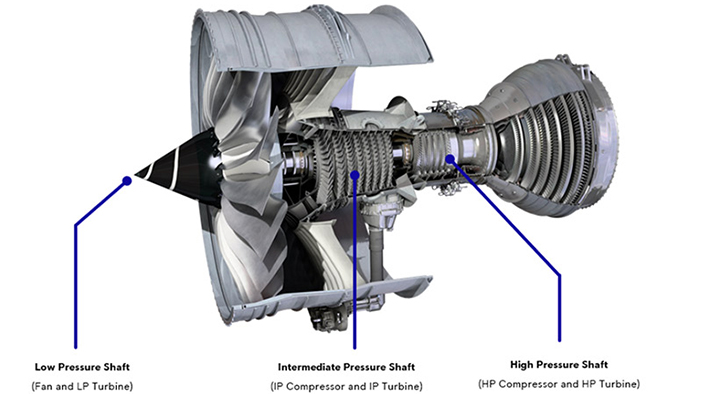

This approach allows the engine’s primary sections - the low-pressure fan (LP), intermediate-pressure (IP) system, and high-pressure (HP) core - to rotate independently on three separate, concentric shafts.

The benefit of this principle is simple but profound: each component group can spin at its own optimal aerodynamic speed, rather than being forced into a mechanical compromise. The fan can turn slower, while the compressors and turbines can turn significantly faster. For the Trent 1000 XE, this freedom is the key to unlocking superior through-life performance, enhanced durability, and greater operational resilience.

The Lifecycle Advantage: Superior Performance Retention

An engine’s true value is ultimately determined by its ability to retain performance over two decades of demanding global operation. All jet engines experience some level of performance degradation over time due to the immense stresses of heat, pressure, and rotational forces. But the three-shaft architecture helps the XE resist these impacts more effectively.

The design results in engine shafts that are shorter and stiffer than their two-shaft counterparts, and most critically a significantly shorter HP shaft. With the bearings positioned closer together, there is less opportunity for the shafts to flex under load. This structural integrity is critical for maintaining the minute gap, known as “tip clearance”, between the tips of the turbine blades and the engine casing. In a less rigid engine, shafts will flex, causing the blades to rub against the casing, which can wear down both components and allow hot gas to leak over the top of the blade. This leakage is a primary cause of performance loss.

The XE’s rigid, three-shaft design minimizes this effect, preserving the engine’s 'as-built' efficiency for much longer. The result is superior performance retention. Independent industry studies have consistently shown that three-shaft engines exhibit a clear advantage in this area. For the Trent 1000 XE, this means up to 1% better fuel burn retention over its operational life. For an airline, that seemingly small figure translates into a significant and predictable fuel cost advantage, worth millions of dollars per aircraft over the life of the asset.

Engineered for Durability and Reliability

The structural benefits of the three-shaft design go beyond efficiency; they are a key driver of the engine’s overall durability and reliability, reducing the risk of unscheduled maintenance while protecting fleet availability. By reducing the span between bearings, the engine experiences less bending and vibration, which in turn reduces wear and tear on thousands of critical components.

The engine’s inherent stability allows for the use of a double-casing structure around the engine’s core. The inner casing holds the static components of the compressor, while the outer casing carries the main structural loads of the engine. This acts like a structural shield, protecting the engine’s core from the powerful forces and flexing that occur during flight. As a result, the rotating components are kept in optimal alignment. This reduces blade rubbing and efficiency loss, contributing to longer component life and greater resistance to the demands of high-cycle operation.

Furthermore, the three-shaft configuration allows the work of driving the compressors to be distributed more evenly. This means the high-pressure turbine can be powered by a single, highly efficient stage. A single-stage turbine requires less cooling air to be diverted from the engine's core, which improves the overall thermal efficiency and contributes to a longer, more reliable operational life for the engine’s hottest components.

Inherent Resilience and Future-Proofing

The modular nature of the Trent 1000 XE’s architecture provides two further strategic benefits: inherent resilience and easier technology integration.

The design allows the main fan to be positioned at an optimal distance from the engine core’s inlet. This separation creates a clearer path for foreign objects, such as runway debris, ice, or birds, to be deflected into the bypass duct, away from the sensitive compressors and turbines. This feature enhances the engine’s resilience to foreign object damage (FOD), a common cause of unscheduled maintenance as well as blade and vane aerodynamic efficiency.

This modularity also makes the engine easier to scale and upgrade. With the IP shaft acting as a unique tuning mechanism between the fan and the core, the LP, IP, and HP systems can be scaled with greater precision. This allows us to introduce new, advanced technologies into one section of the engine without requiring a complete redesign of the entire architecture. This future-proofing ensures that the XE can readily incorporate performance and durability enhancements as they are developed, protecting an airline’s investment for the long term.

Efficiency on the Ground: The Taxiing Advantage

The XE’s three-shaft architecture allows the 787 to run at a lower, more efficient idle speed when on the ground. This lower idle thrust provides two tangible benefits during taxiing:

1. Lower Fuel Burn:

Reduced fuel consumption during ground operations may seem minor on a per-trip basis, but over thousands of flights per year, it accumulates into a significant operational cost saving.

2. Reduced Brake Wear:

With less forward thrust to manage while manoeuvring around the airport, there is less demand on the aircraft’s braking system. This leads to lower maintenance costs and longer brake life.

Architecting Enduring Value

The Trent 1000 XE presents a new standard in customer experience and through-life value for the Boeing 787. Its capabilities are in great part the result of a unique design philosophy refined over decades. The three-shaft architecture is not simply a technical distinction, but the foundation of the engine’s lifecycle value proposition.

By enabling each part of the engine to operate at its peak efficiency, the design delivers improved performance retention, enhanced durability, and greater operational resilience. For the world’s leading Boeing 787 operators, this translates into a commercial and operational advantage, ensuring the Trent 1000 XE delivers predictable performance and lasting value for decades to come.
