MT30 Marine gas turbine

World's most powerful in-service marine gas turbine

The MT30 integrates world leading marine gas turbine technology to give operators efficiency and reliability in a compact package with a market-leading power-to-weight ratio

WATCH

MT30 Marine gas turbine

Designed with approximately 50 per cent fewer parts than other aero-derived gas turbines in its class, to minimise maintenance costs, the MT30 has a twin-spool, high-pressure ratio gas generator with free power turbine. It maintains operating efficiency down to 25MW and can be configured in either mechanical, electrical or hybrid drive configurations. Proven at sea, MT30 entered service in 2008 powering the US Navy's first of class Littoral Combat Ship, USS Freedom.

View all

All programme updates

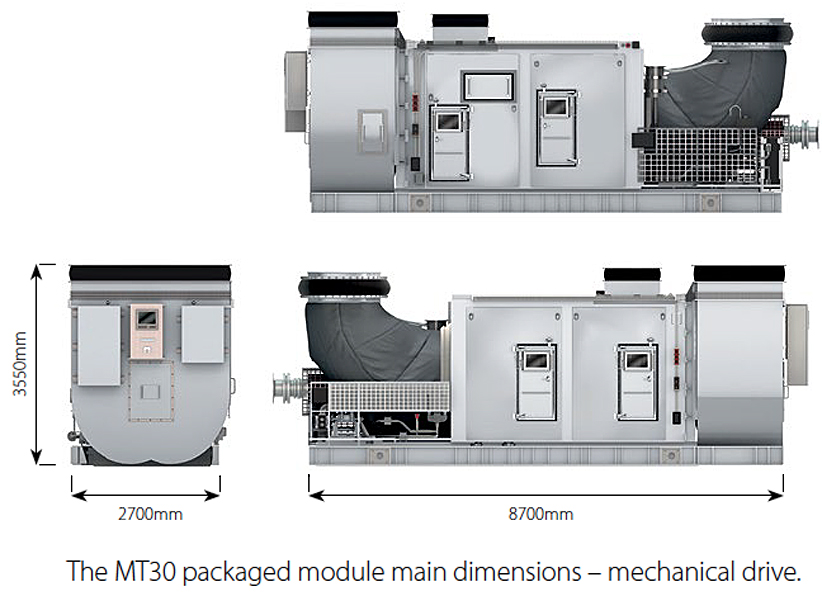

Power (MW)	Weight (kg)	Dimensions (m) LxWxH	Output shaft (rpm) alternator drive	Output shaft (rpm) mechanical drive
30 or 40 flat rated to 38C*	6500 unpackaged 30000 packaged**	8.7x2.66x3.6	3000 (50Hz) 3600 (60Hz)	2800 to 3600

* More power available on a case-by-case basis
** Dependent on options

All data subject to change without prior notice

Excellent performance retention.
Member of the aero Trent engine family.
Minimal number of off-package modules allows easy integration into machinery rooms.
Over 40% thermal efficiency.
Modular design for simplified engine maintenance.
Low airborne and structural noise signature.
ABS, Lloyds and DNV Certified.

MT30 is the most power dense naval gas turbine available today, proven to deliver superior performance, operational flexibility and reliability. This is why it is already the engine of choice for world’s most advanced naval platforms including the Royal Navy’s Queen Elizabeth Aircraft Carriers and Type 26 Global Combat Ship, the US Navy’s Littoral Combat Ship Freedom Class variant and DDG-1000 advanced destroyer, Republic of Korea Navy’s FFX-Batch II frigate and the Italian Navy’s new Landing Helicopter Dock.

Rolls-Royce combines innovative naval technology with a proven high performing naval pedigree to deliver the most cost effective and efficient ship power, propulsion and through-life solutions…for over 4,000 customers around the world.

The MT30 control system provides fully integrated alarm, monitoring and control functions for the packaged gas turbine, including overspeed protection. An integral back-up power supply is an option. A distributed processing architecture uses modern databus technology to provide improved reliability through simplified wiring and a reduced number of connectors, with main processors and power supplies located on the outside of the package enclosure.

The system supports Fully Integrated Control System unmanned operation by making engine control and monitoring available over dual redundant databus and hard-wired signals for full integration into the platform control system. It can also be set to log predetermined engine/package data for optional off-board engine health monitoring and logistical support.

A local control panel is provided to display all necessary engine and package parameters and enabling control of engine functions, maintenance and calibration activities.
